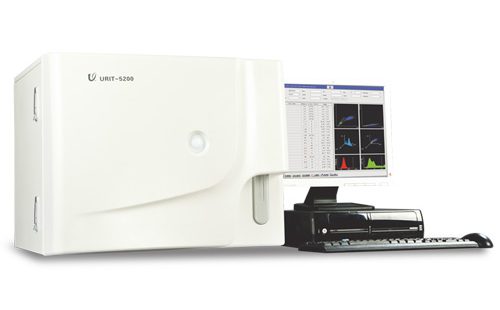

5-Part-Diff Auto Hematology Analyzer
Description
28 parameters :
WBC,LYM%,MON%,NEU%,EOS%,BAS%,LYM#,MON#,NEU#,EOS#,
BAS#,RBC,HGB,HCT,MCV,MCH,MCHC,RDW_CV,RDW_SD,PLT,MPV,
PDW,PCT,P_LCR,RETIC%, RETIC_ABS, IRF
2 Histograms for RBC and PLT
2 Scatter grams: 5-part differential scatter gram
Eosinophils and Neutrophils scatter gram
2 3-D stereograms
Principles of operation :
WBC/DIFF: Flow Cytometry, Laser light multi-dimensional cell classification
RBC/PLT Analysis: Impedance method
HGB test: Cyanide-free reagent colorimetry
Reagent : Diluent, Sheath,Detergent
Sampling modes :
Whole blood 20μL
Pre-diluent 20μL
Aperture Diameter : RBC/PLT 68μm
Throughput :
Whole blood up to 60 samples per hour
Pre-diluent up to 60 samples per hour
Data storage : Up to 200,000 sample results with grams
Alarms : Error messages
Display : PC display (14inch color TFT)
Dimension : 598.5MM(L)×585.5MM(W)×488.5MM(H)
Display : PC display (14inch color TFT)
Power : 220V,50/60Hz 600VA
Weight : 70kg
Helium-neon (HE-NE)laser light scatter
URIT-5200 Auto Hematology Analyzer uses helium-neon laser for the flow cytometry system. Through calculations of different angles via laser scatters, the instrument provides complete analysis including cell size, granularity and complexity.
One channel give complete differentiate WBC
URIT-5200 counts lymphocyte, monocyte,
neutrophil, eosinophil and basophil in WOC channel.
3D stereograms
High quality and easy maintenance syringe system
