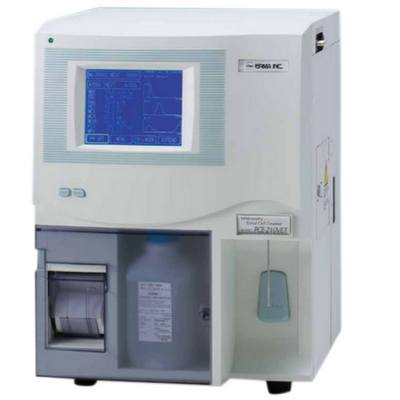

PCE-210 – Fully Automatic Blood Cell Counter
SALIENT FEATURES
The new touch screen system realizes easy & simple operation. A large back-light LCD screen makes reading clear and easy.
18 Parameters with 3-part Differential
1000 Samples Storage with Histogram
Touchscreen Operation
Built-in Self-monitoring System
Low cost per Test
Category : Hematology
TECHNICAL SPECIFICATIONS :
Sample Volume : Vein 20ul Earlobe 10ul
Throughput : 60 samples/hour
Printer : Thermal dot
Display : Back-light LCD
Data Storage : 1000 sample data with histograms
Parameters :
– WBC : Number of white blood cells
– LYM : Number & rate of lymphocyte
– MID : Number & rate of mid-range cells
– GRA : Number & rate of granulocyte
– RBC : Number of red blood cells
– HGB : Haemoglobin conc
– HCT : Hematocrit rate
– MCV : Mean corpuscular volume
– MCH : Mean corpuscular hemoglobin
– MCHC : Mean corpuscular hemoglobin conc.
– RDW : RBC distribution width
– PLT : Number of platelet
– MPV : Mean platelet volume
– PDW : Platelet distribution width
– PCT : Plateletcrit value
Reproducibility :
– WBC : within CV3.0%
– RBC : within CV2.0%
– HGB : within CV1.5%
– HCT : within CV2.0%
– MCV : within CV1.5%
– MCH : within CV2.0%
– MCHC : within CV2.0%.
– PLT : within CV5.0%
– PCT : within CV5.0%
– MPV : within CV5.0%
– PDW : within CV5.0%
Principles : HGB : Colorimetry, Blood Cell: Electric resistance
Power Consumption : 180VA
Power Supply : AC 100V/220V ±10%
Dimensions : 330 x 380 x 449 mm
Weight : 19.5 kg Apprx
*Specifications are subject to change without prior notice.
